.▪ Screwed female ends to BSP.
.▪ Full bore & perfect right angle to ensure unobstructed flow.
.▪ High quality antirust coating on threads.
.▪ Hot galvanised with uniform zinc coating.
.▪ Superior grade malleability to ensure crack free installation.
.▪ Heavy pattern & superb in quality and performance.
.▪ Functionally sturdy and visually attractive.
.▪ Full threaded length with precise right angled diversion at 90°. |
|
|
.▪ Test Pressure :
.▪ 25kg / cm2g (Hydraulic)
|
|
|
 |
|
| |
|

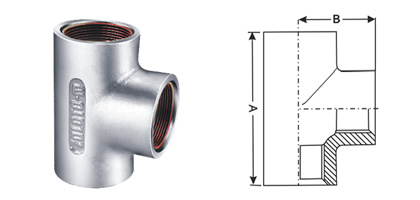

| Nominal Size (mm) |
A |
+ / - |
B |
+ / - |
| 15 |
64 |
2.5 |
32 |
2 |
| 20 |
74 |
2.5 |
37 |
2 |
| 25 |
82 |
3 |
41 |
2 |
| 32 |
94 |
3 |
47 |
2 |
| 40 |
104 |
3.5 |
52 |
2.5 |
| 50 |
120 |
3.5 |
60 |
2.5 |
| 65 |
140 |
3.5 |
70 |
2.5 |
| 80 |
158 |
4 |
79 |
3 |
| 100 |
192 |
4 |
96 |
3 |
| 150 |
262 |
5 |
131 |
3.5 |
|
|
